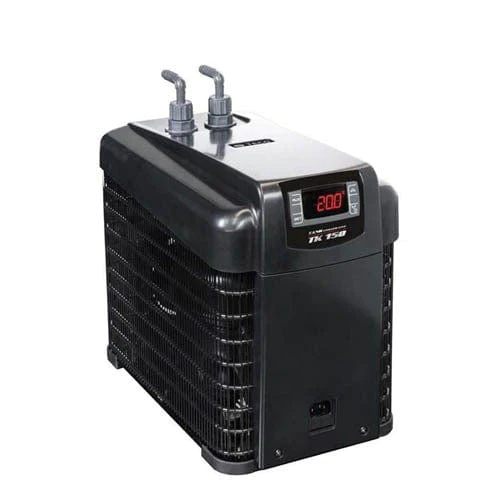

Teco TK150 Chiller

TECO TK150 CHILLER

EFFICIENT COOLING TECHNOLOGY

The exclusive use of internationally recognised high-performance compressors and of the titanium coaxial heat exchanger, ensures high performances. The set of technologies used allows you to decrease noise levels and achieve the highest COP-Coefficient Of Performance contributing to significant energy savings.

DIGITAL THERMOSTAT

The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1 °C/0.2°F. The setting range is 5°-35°C (41°F – 95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperatures are in °C or °F and there are security alarms.

EFFICIENT DESIGN

The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The user will appreciate the functionality of the shape and the compact size, which makes the chiller ideal also for confined spaces.

UNIQUE PRODUCT FEATURES

The TECObody-condenser SYSTEM represents another major achievement: besides performing its main function as an integral part of the structure, the condenser confers an exclusive and original design to the chiller. Moreover, it makes the use of the filter unnecessary, thus eliminating the cleaning problems normally associated with it.

Technical Specification

• Supply – 230V-50Hz
• Cooling Power Consumption – 150 w
• Ecological Refrigerant – R134a
• Min. Flow rate – 400 lt / h
• Tank Size – up to 150 lt
• (water temp. 25°C – Room temp. 30°C – Heating load 0,3 w / lt)
• Dimensions – mm. 215 x 331 x 315 (h)
• Weight – 16.5 kg
• Connections – fitting 1/2″ – 12mm int. tube diameter
• Chiller Only – No Heater
