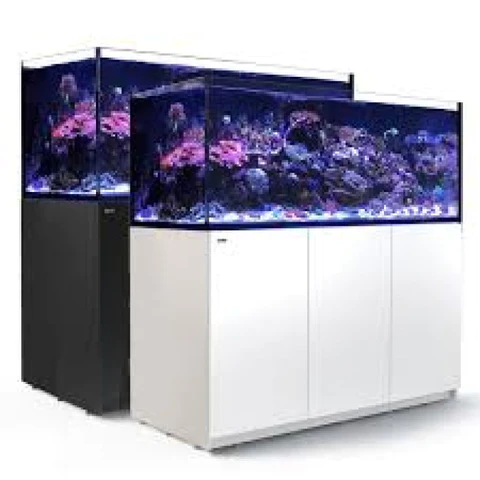

REEFER XXL
625 | 750
The REEFER XXL includes two models that enhance your freedom to create a truly spectacular reef.
Both models are 60cm (23.6″) high & 65cm (25.6″) wide and are available in 150cm (59″) long/625 liter (166 gal) capacity or 180cm (71″) long/750 liter (200 gal). The XXL750 V3 now includes a dual pump return to allow for better-distributed flow in the aquarium. All the REEFER XXL models now feature a laminated, plywood marine-spec cabinet for greater water resistance with adjustable feet for perfect leveling on any surface.

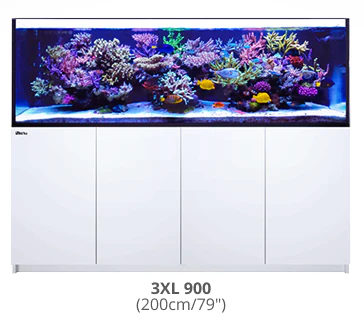

REEFER
3XL 900
The REEFER™ 3XL 900 allows you to take reefscaping to another dimension. The 3XL 900 is 65cm (25.6″) high & wide, and 200cm (79″) long with a 900 liter (240 gal) capacity. This unit introduces an enlarged overflow box with dual side-facing return pump outlets that provides ideal water circulation in the tanks with flows of up to 10,000 lph/2600gph.
Go to the REEFER 3XL 900 Page >>
A unique feature of the 3XL 900 is a split sump system that provides unsurpassed flexibility. The main sump is set for the main filtration functions with an optional refugium chamber and a dedicated adjustable height skimmer chamber. The sump extension (60 liters/16 gal) can be connected to the main sump and used for additional filtration, as a larger refugium, or even as a dedicated frag tank. Alternatively, it can be set up as an independent unit and used as a full-size (83 liters/22 gal) RO reservoir or saltwater reservoir for automated water changes.
Watch the 900 beast video!
|
REEFER™ XXL Models
|
|||
| Specs | XXL 625 | XXL 750 V3 | |
| Main Features | Ultra clear front and side glass |  |
|
| Ultra clear front glass thickness (mm) | 19 (3/4″) | 19 (3/4″) | |
| Built in surface skimmer | |
Enlarged | |
| Integrated automatic top up system | |
|
|
| System Volumes | Display tank water volume (L) | 502 (133 gal) | 602 (160 gal) |
| In cabinet sump water volume (L) | 123 (32 gal) | 150 (40 gal) | |
| Total system water volume (L) | 625 (165 gal) | 750 (200 gal) | |
| RO reservoir volume (L) | 28.7 (7.6 gal) | 28.7 (7.6 gal) | |
| System Dimensions | Display tank length (cm) | 150 (59″) | 180 (71″) |
| Display tank height (cm) | 60 (23.6″) | 60 (23.6″) | |
| Display tank width (cm) | 65 (25.6″) | 65 (25.6″) | |
| Total system height with cabinet (cm) | 148 (58.3″) | 148 (58.3″) | |
| Sump Dimensions | Water height (cm) | 21-27 (8.3”-10.6”) | 21-27 (8.3”- 10.6″) |
| Skimmer chamber without Refugium wall (cm) | 51 x 51 (20” x 20”) | 65 x 51 (25.6” x 20”) | |
| Skimmer chamber with Refugium wall (cm) | 51 x 28 (20″ x 11″) | 65 x 28 (25.6″ x 11″) | |
| Pump chamber (cm) | 33 x 28 (13” x 11”) | 35 x 28 (13.7” x 11”) | |
| Return Pump | 3/4” threaded hose barb – Pipe Int. Dia | 25mm (1”) | 25mm (1”) |
| Recommended flow (lph) (pump not included) |
6000 (1600 gph) | 10,000 (2640 gph) | |
| Deluxe Series Features | ReefLED™ 90 | 3 Unit 270W |
4 Unit 360W |
| New Special Features |
Adjustable Height Skimmer Chamber | |
|
| Dual side-facing return pump outlets | |
||
| Refugium Ready | |
|
|
| 225 micron Thin-mesh Filter Bag | 2 | 2 | |
| Filter Media Cup | 2 | 2 | |
| Quick Release cabinet door hinges | |
|
|
| Heavy Duty levelable Plywood Cabinet | |
|
|
| REEFER™ 3XL Model | ||
| Specs | 3XL 900 | |
| Main Features | Ultra clear front and side glass | |
| Ultra clear front glass thickness (mm) | 19 (3/4″) | |
| Enlarged in surface skimmer | |
|
| Integrated automatic top up system | |
|
| System Volumes | Display tank water volume (L) | 720 (192 gal) |
| In cabinet sump water volume (L) | 180 (48 gal) | |
| Total system water volume (L) | 900 (240 gal) | |
| RO reservoir volume (L) | ||
| System Dimensions | Display tank length (cm) | 200 (79″) |
| Display tank height (cm) | 65 (25.6″) | |
| Display tank width (cm) | 65 (25.6″) | |
| Total system height with cabinet (cm) | 153 (60″) | |
| Sump Dimensions |
Water height (cm) | 21-27 (8.3″-10.6″) |
| Skimmer chamber without Refugium wall (cm) | 45 x 51 (17.7″ x 20″) | |
| Skimmer chamber with Refugium wall (cm) | 45 x 28 (17.7 x 11″) | |
| Pump chamber (cm) | 33 x 28 (13″ x 11″) | |
| Extension sump (cm) | 51 x 42 cm (20″x 16.5″) | |
| Return Pump | 3/4” threaded hose barb – Pipe Int. Dia | 25mm (1”) |
| Recommended flow (lph) (pump not included) |
10,000 (2640 gph) | |
| Deluxe Series Features | ReefLED™ 90 | 4 Units 360W |
| New Special Features |
Adjustable Height Skimmer Chamber | |
| Dual side-facing return pump outlets | |
|
| Split sump system | |
|
| Refugium Ready | |
|
| 225 micron Thin-mesh Filter Bag | 2 | |
| Filter Media Cup | 2 | |
| Quick Release cabinet door hinges | |
|
| Heavy Duty levelable Plywood Cabinet | |
|
