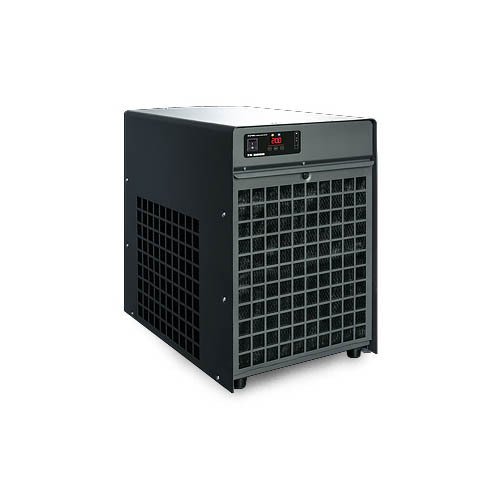

Teco TK3000 Chiller

TECO TK3000 CHILLER

EFFICIENT COOLING TECHNOLOGY

The exclusive use of internationally recognised high-performance rotary compressors and of the titanium coaxial heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP – coefficient of performance and the lowest noise levels

DIGITAL THERMOSTAT

The setting of functions is intuitive and the temperature reading is accurate, resolution 0.1°C/1°F. The setting range is 5°C – 30°C (41°F – 86°F) and the temperature is kept constant with a maximum differential of 0.5°C/0.5°F. Displayed temperature is in °C or °F and there are security alarms.

EFFICIENT DESIGN

The chiller is characterized by a solid structure designed to provide a perfect protection against oxidation and it is therefore perfect to be used with salt water.

UNIQUE FEATURE

Innovative TECOair system: a system that, thanks to the conveyor rotation, assure to the chiller an optimal air exchange and heat expulsion from the cabinet; Magnetic filter for quick maintenance; R290 environmentally friendly gas that reduce power consumption with increased performance and COP; Designed for TECOnnect Wi-Fi.

Technical Specification

• Supply : 230V-50Hz
• Cooling Power Consumption : 750 w
• Ecological Gas – R410A
• Min. Flow Rate – 3000 lt / h
• Tank Size – up to 3000 lt
• (water temp. 25°C – Room temp. 30°C – Heating load 0,3 w / lt)
• Dimensions – mm. 395 x 600 x 565 (h)
• Dimensions-in. 15.55 x 23.62 x 22.24 (h)
• Weight-39 kg
• Connections-fitting 1″ – 25mm int. tube diameter
• Chiller Only – No heater
